MX-5 Miata Fuse Box
NC 2008

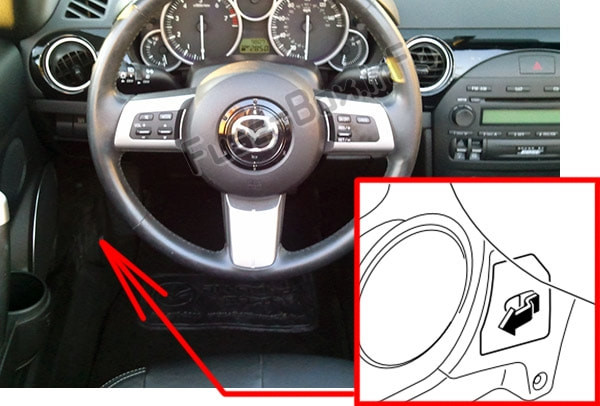

DRIVER'S SIDE FUSEBOX
Most driver's side fuses are mini blades. Check glove compartment for extras beyond those plugged in. Purchased 8/19/22.

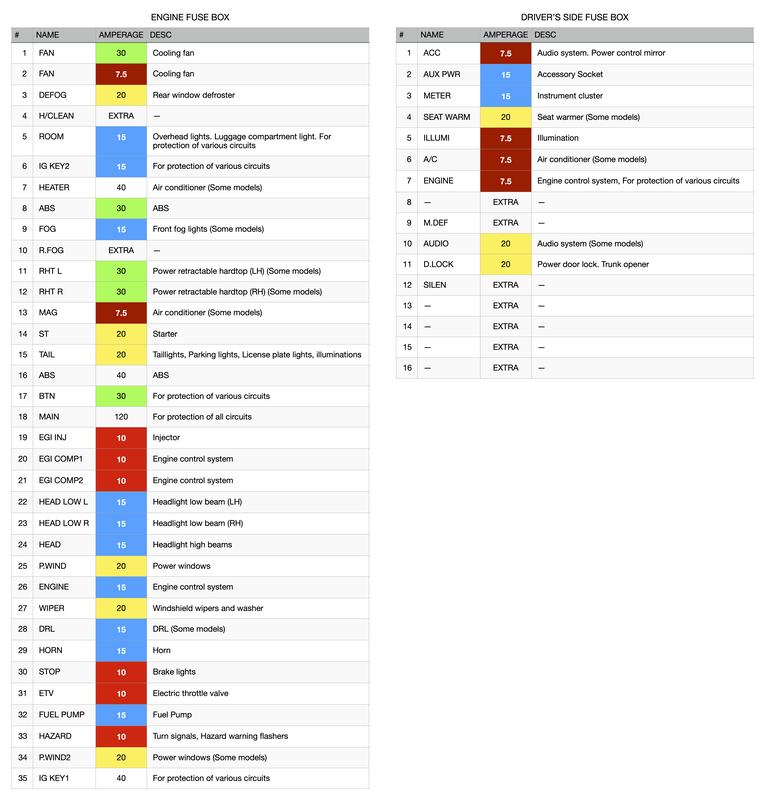

FUSE TABLE

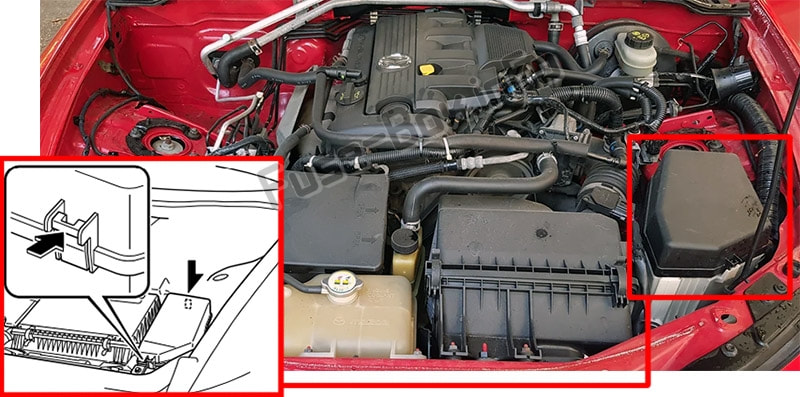

ENGINE COMPARTMENT
Many engine compartment fuses are LOW PROFILE MINIs. Should be extras in slots, but maybe also in glove box. Purchased 8/12/22.

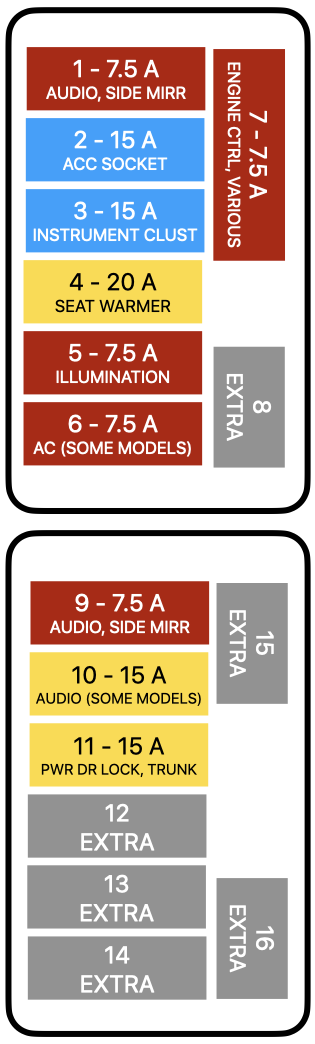

DRIVERS SIDE FUSE BOX

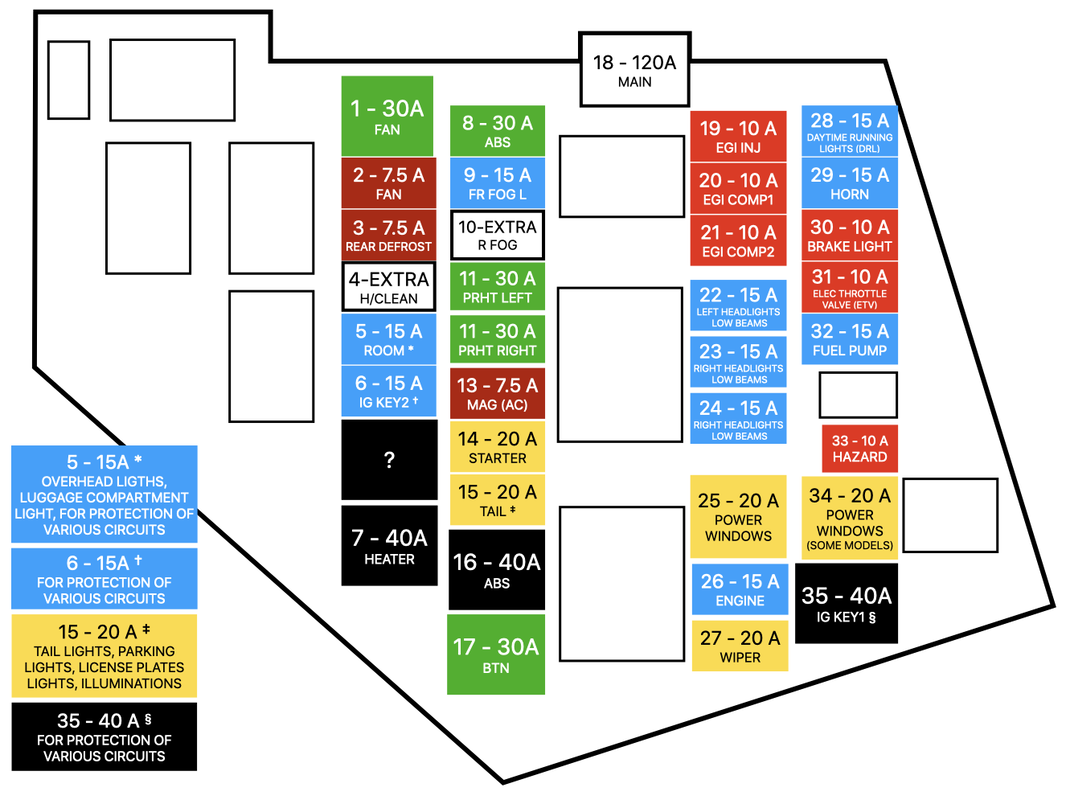

ENGINE FUSE BOX
There may be extra fuses in the glove compartment.
